With lateral move irrigation systems that use ditch feeds as a water source, there are two ways to build the ditch – with cement bricks or geomembranes.
1) Cement bricks
The advantages of cement bricks are that they conserve water by reducing friction loss caused by earthen ditches, minimize erosion and invasive weed growth caused by irrigation, are easy to maintain compared to dirt ditches, and can be used in any field. Cement ditch feeds also work well with gravity systems as no pumping is required.
2) Geomembrane
The advantage of geomembrane ditches are that it’s ten times faster than laying precast slabs or in-situ concrete as no mixing, measuring or compacting is required and the cost of installation is up to 60% less. Geomembrane ditches also help to prevent weed growth and erosion, reducing maintenance cost.

1.lateral move center

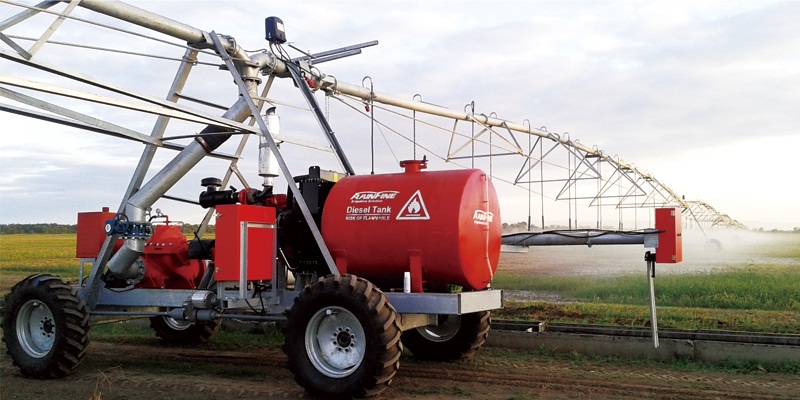

In a lateral move center, water is piped from the ditch to the sprinkler. Because ditches provide a large quantity of water more of your field at one time. If the irrigation system is designed with two wings, the span can be longer than 800m, and if the machine is made to move 2,000m, the total irrigation area could be up to 160ha.

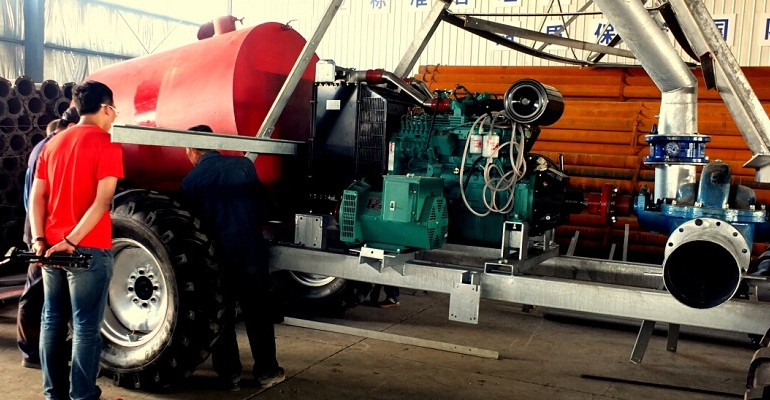

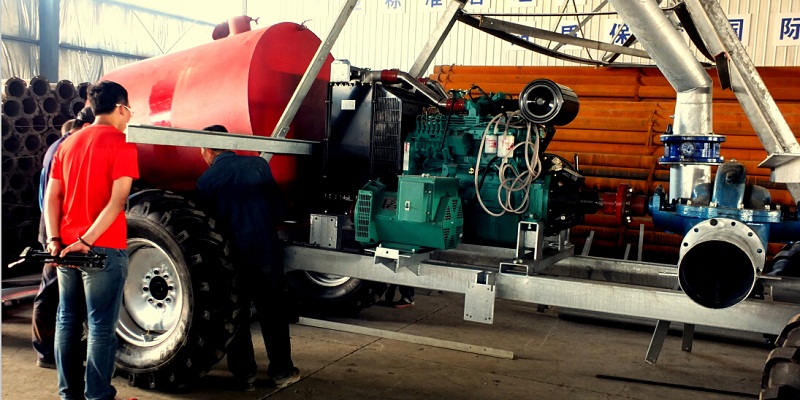

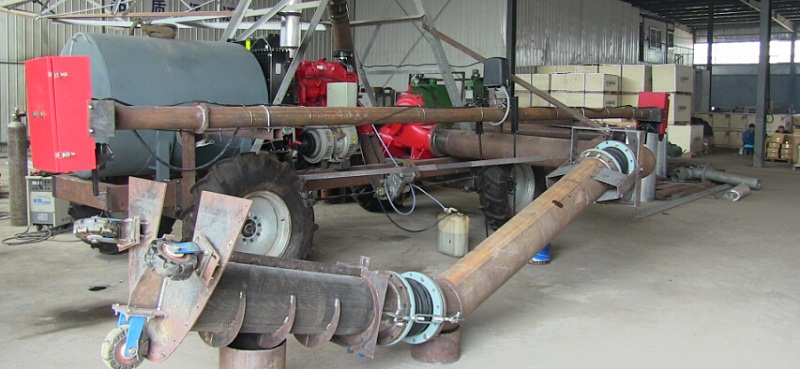

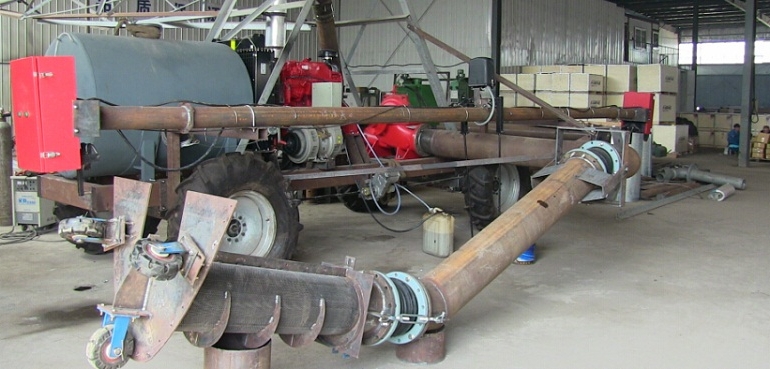

The capacity of the pump and diesel engine depends on the size of the land and water application rate as well as the working speed of the machine. Pump and diesel engine are installed on the center pivot’s cart. An alternator is installed at one end of the diesel engine to produce electric power for the machine while a water suction pipe and boat are installed on one side of the cart to pump water from ditch.

lateral move center: Leg angle size: L4″x4″ Riser: diameter 8” thickness 1/8” Elbow: diameter 8” thickness 1/8” It is a special design to form a solid anchor for even longest system. Control panel: Main breaker. Control transformer. Start stop switch. Main contactor. Monitoring indicators. Forward / reverse contactors rated 600v at 30 amps. Fuses – 30 amps. Lightning arrestor

System monitors
– control power
– pressure guage
– last tower movement
– control circuit power
– safety circuit status
– reverse control circuit
– forward control circuit
– pump control circuit
– Monitors incoming 380V power.
Our main control also supports:
No water start stop.
Running direction (auto-stop/auto-reverse).
Speed adjusting.
Under voltage relay.
Over current relay.
Emergency stop.
Low water pressure shut off.

2.diesel generator

We can offer various diesel generators from 6 to 20kw for pivots. We can supply small diesel generators that most big brands do not with chinese best engine. We are able to supply any spare parts for these generators as well.

Model No.: PF15GF
Prime Power(kw/k VA): 15/19
Standby Power(kw/k VA): 16.5/20.9
Engine Model: 4L22BD-4
Alternator Model: FD1E
Dimensions(mm): 1360*560*885 Weight(kg): 420

3.spans

Metallic zinc-coated Spans rubber-boot united between themselves, mounted on support of intermediate towers-each with two wheels, axles drive unit from electric geared motor to Wheels gearboxes; the electronic block of the system of the equalization and checking.

Truss design is the most important part on pivot parts on pivot irrigation system. The structural mechanics are precisely calculated by computer and tested in tough road. It can stand 20 years long lasting work without any bending or breakings.

Two options:
1. Galvanized pipe diameter 8”, 6 5/8”, 5 9/16”
2. Galvanized pipe with poly lining diameter 8”, 6 5/8”, 5 9/16” for special water

Galvanizing Kettle:
Inside Dimension: 14,000 long x 1,200 wide x 2,000 mm deep
By W. Pilling of Riepe, Germany, the world’s leading kettle manufacturer.
50mm wall thickness, European Special Grade Plate (see analysis below)
Typical Analysis: C, .08%; Mn, .5%; P, .02%; S, .02%; Si, traces only
Zinc Volume of Kettle: 90 tons
Weight of Kettle: 25,150 kgs

Quality standards: BS-729, ASTM-A123

This flexible joint design can support all the strength of the pivot and maximum the flexibility of the pivot in rolling land. The aluminum coupler will break when the spans are not in proper alignment. This will cause the water leak and the water pressure loses. The control panel will switch off the system when the water pressure gets lower and stop the machine. The rubber boots can reduce the water friction and resistance.

We use high frequency electric heating system to heat both ends of the steel rods and use head forging machine to form them. When the rod being cut as the picture shows, you can find that the steel rod and the headed part are exactly the same molecular. This truss rod can stand 60,000psi yield strength. We use 22mm diameter rods instead of 19mm to make it stronger than other manufacturers.

Two options:
1.Traditional UMC coupler (left): no more used
2.UMC C-X Coupler (right)
Units come pre-assembled
Universal design
Simple one wrench installation
UV stabilized Urethane puck

Two options:
1. Standard(left):
Material: Grey Iron HT250
Shaft Material: high-strength forged steel
2. Heavy duty(right):
Material: Ductile Iron HT300
Shaft Material: Steel 45

Two options:
1. Rubber tire:
11.2*38: Good clearance and flotation
14.9*24: Tubeless tire 4ply, for heavier and longer spans
16.9*24: For longer spans more flotation
2. Plastic tire:
Rim: 10*38 with plastic pads (16 pcs×4kgs each)
Similar size to 14.9*24 rubber tire
Never flat / UV protection
Pad replacement / Non maintenance

Gooseneck: M X M, M X F, M X B

We use automatically controlled welding Robot to do the welding for pipes to ensure the quality. The welding line is in perfect quality for the span pipe welded by Robot. We introduce Form drill technology from Germany and use it in our pipe drill processing system. This technology can help the gooseneck to have a maximum connection to the pipe outlet holes and reduce the gooseneck damages during the sprinklers vibrating.

Tower box:
Contactor rated 600V at 16 amp min.
Alignment switches rated 277V at 15 amp tested to 10,000,000 cycles.
On-Off switch rated 600V at 10 amps.

– 4# 14 gauge, 6# 18 gauge
– 4# 12 gauge, 6# 14 gauge
– 4# 10 gauge, 6# 14gauge
– Inner PVC cover 30 mil thick
– 8 mil aluminum shield
– Outer high-density polyethylene cover is 15 mil thick
– Sunlight resistant
– Moisture and dirt protection

4.overhang

The high yield strength overhang cable is used in longer overhang. This design can help farmers to increase yield with less investment.

Pipe size:
Φ141mm*3mm
Φ102mm*3mm
Overhang length:
6.70/13.41/20.12/26.82m

5.end gun

Corner control system for end gun
The end gun can switch on/off by solenoid valve when pivot moves to four corners. This valve is controlled by the switches in the pivot center.

6.sprinkler

The vast differences in crops, soils, farming practices and climatic conditions worldwide, coupled with regional differences in the availability of water and energy resources requires a diverse array of center pivot sprinkler performance. The sprinklers we choose for you are advanced designed to simplify the variety of sprinkler choices into one basic group of center pivot products.

D3000
A fixed-spray sprinkler which produces a variety of patterns dependent upon the specific spray plate;
Flip-over dual spray can allow easy conversion of the spray pattern;
Choose spray plate options to germinate, irrigate, chemigate;
Optional hose drag adapter for Low Energy Precision Application – LEPA;
Part circle available.

O3000
Outstanding uniformity and optimal droplets at low operating pressures;
Bracket unassembled, eliminate debris hang-up and water-pattern misting common to conventional sprinklers;
Long wear-life, reliable operation and durability;
Excellent water application, 10-20 PSI operating pressure;
Wind resistant, maximum water and energy conservation.

R3000
Greater throw radius. The wide water pattern from rotating streams equates to lower average application rates, longer soak time and reduces runoff;
High uniformity. Increase overlap from adjacent sprinklers improves uniformity;
Reduce wind drift and evaporative loss;
Part circle available.

S3000
Gentle rain at low pressure;
Utilize a free-spinning acting to produce a gentle, rain-like water pattern;
Designed for more sensitive crops and soils;
Superior uniformity with better overlap and lower application rates;
Crop-guarded body for low energy, down in the crop application;
Part circle available.

LDN
Minimized losses to wind drift, evaporation and runoff;
Multiple deflector pad design;
Rugged design for traveling through tall crops;
Low pressure – 6 to 15 psi;
Chemigation Pads produce an upward spray under the crop canopy;
Bubbler Pad applies water in a gentle, aerated pattern ideal for direct-to-furrow irrigation;

i-Wobs
Unique off-center rotary action, outstanding uniformity;
Gentle, rain-like application;
Excellent distance of throw;
Low pressure operation from 10 to 20 psi, can mean big energy savings over the course of a year.

Xi-Wob
Large area of coverage
Ultra low pressure
Easy clean, easy change nozzle
Droplet size needed for type of soil
Uniformity affects
Application intensity
Excellent distance of throw

Super Spray
Wide variety of color-coded deflector pads to customize distribution pattern;
Full 360o spray pattern;
Low-pressure operation: 6-25 psi;
Chemigation pads and hose barb adapter available.

7.chemical injector

The capacity up 85 to 500 LPH The maximum pressure up to 12 bar Measuring accuracy reaches to +/- 2% Within the scope of 10% – 100% flow rate Temperatures of liquid between -10oc~40oC Max.Suct: 2 m Motor: Standard 220V/380V, 50HZ

8.filter

This is an optional part when water is full of dirt. Normally each pivot needs one filter. The picture on the left below is a cluster system with 3 filters for 3 pivots nearby. The left second picture is the filter system being used together with segmented filter for drip irrigation.

9.auto reverse

Due to the objective factors such as the terrain, obstacles, house and so on, the pivot cannot work a full circle (360 degrees). This system can control the pivot to stop/reverse automatically without manual control.

Install a barricade on the last tower of the pivot, when the touch arm hits the barricade, the pivot can stop and reverse automatically;
This system include control box, sensor arm, traverse arm, cable and springs;
Safety and crash prevention;

10.shipment

Each span parts are packed into one wooden box with clear packing list. This makes it easier for installation.
All wooden boxes are made of export material.
500m fixed pivot(9 spans) can be loaded into 1 x 40’ HC container.

11.installation

We will dispatch our engineers to organize the installation work but the owner will organize labors. Normally one 7 spans pivot needs 8 labors working 1 week for installation.

12. spare parts & gurantee

We will ship 2% spare parts together with the equipments in containers. The items of the spare parts will be listed on the contract.
Our local representatives or dealers will help farmers to replace the damaged parts when necessary.

Guarantee:
1 year concerning electric equipment
10 years/10 000 working hours for gearboxes and gear motors whichever expires earlier
20 years concerning the galvanized equipment against corrosion
3 years for tires and rims
