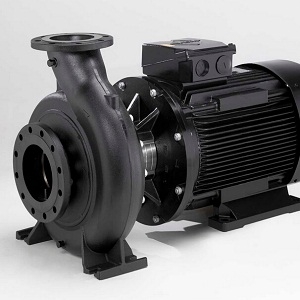

1.End suction pump with electric motor
Our back pull out design eliminates the need to disturb the pump body and pipelines when servicing and has easy-to-replace parts. Due to the design, the complete pump-rotating element can be withdrawn towards the motor end without disturbing the suction or deli-very pipeline. The motor remains fixed to base plate, and the pump rotating element can easily be dismantled into its components. After reassembling, no time is consumed for realignment.
Capacity: up to 520m3/h
Head: up to 160m3/h
Temperature: up to 1100C
Speed: 1450/2900 rpm 1750/3500 rpm

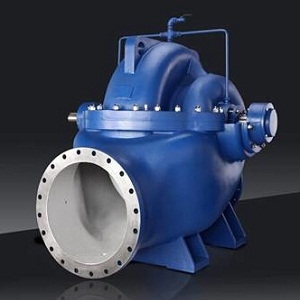

2. Single Stage Double Suction Axially Split Casing Centrifugal Pump
NSC is a highly efficient double suction axially split single-stage centrifugal pump featuring a structure that works in a very wide range of applications. This pump also works both horizontally and vertically, often used for water supply in waterworks factories, water-cooling projects, industrial water supply and drainage systems and water transportation.
Similar to Goulds 3410, 3415, and 3420
Capacity: 50 ~ 20000m3/h
Head: 10 ~ 280m
Temperature: up to 105 °C

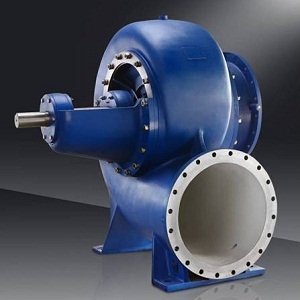

3. Mixed-flow Sewage Pump
HW series mixed-flow sewage pumps with horizontal and vertical installation, are mainly used for se-wage treatment and irrigation, with the advantages of simple structure, reliable operation, easy installation and maintenance, high efficiency, small volume, light weight, etc.
Performance Range: (EC)
Temperature: to 80 °C
4. Vertical Turbine Pumps
The VTP series vertical turbine pumps are normally designed to operate in wells or sumps, offering wide hydraulic operating range, us-ing centrifugal mixed flow or axial impellers.
This series is used widely in water engineering, deep well irrigation, mine drainage, irrigation, river wa-ter or seawater circulation, fire pro-tection engineering applications.
Performance Range: (VIT, VIC,VMP,VMF,VAF,VIS)
Temperature: up to 80 °C

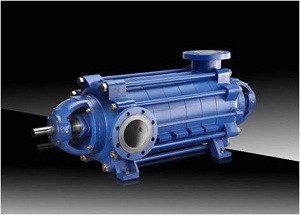

5. Horizontal Multistage Centrifugal Pump
HMC horizontal ring section multistage centrifugal pumps are traditional multis-tage centrifugal pumps with wide appli-cation range, using grease-lubricated standard bearings and mechanical seals or packing.
Similar to Goulds 3310
Temperature: up to 105 °C
Quality Control of Pump Manufacturing
Excellent Pattern fabrication & Foundry facilities
All the castings are made from metal pattern and resin sand, and impellers are precision cast. Patterns are made with 3D technology and CNC machinery to ensure that our good hydraulic models can be transformed into high- efficiency products.

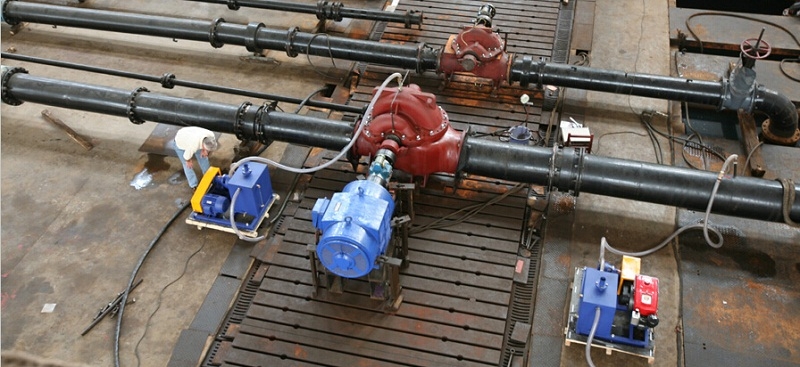

The crane used can lift 50 tons to a height of 12 meters, and the test pool used is 8,000 cubic meters with a depth of 12 meters. The maximum test power used is 5000kW, meeting many different standards and requirements. All tests are automatically operated to get the most reliable and accurate data.
